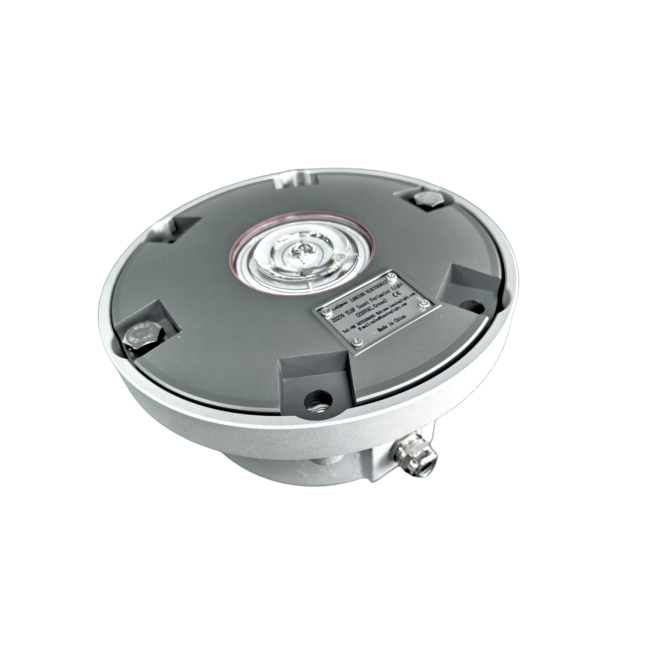

The Inset Heliport Perimeter Light is a high-performance LED lighting solution designed to clearly define heliport landing and take-off areas, ensuring safe helicopter operations in all weather conditions. Featuring a durable, low-profile inset design and an IP68-rated enclosure, it provides exceptional resistance to water, dust, and harsh environmental conditions. The light delivers a minimum average intensity of 30cd with a bright green output, offering excellent visibility while maintaining low power consumption. With a long LED service life of up to 100,000 hours and multiple power supply options, it is an ideal choice for commercial, offshore, hospital, and private heliport installations.
-
Max Intensity :
≥30 cd
-
LED Source :
Imported green customized LED
-
LED Service Life :
100,000 hours
-
Emitting Color :
Green
-
Power Supply :
AC220V, AC120V, DC12-48V or 6.6A
-
Power Consumption :
5W
-
Working Mode :
Steady-burning
-
Supply Frequency :
50Hz ~ 60Hz
-
Net Weight :
5.2 kg
-
Dimensions :
Ø222 mm (D) × 115 mm (H)
-
Install the light on a stable, smooth surface with adequate structural strength. If a suitable mounting surface is unavailable, custom mounting brackets can be provided upon request.
-
During installation, avoid placing the fixture near other strong light sources. Ensure that the photocell remains unobstructed and is not covered by nearby objects.
-
Before connecting the light, verify that the power supply voltage matches the unit's rated electrical requirements.
-
-
-
-
-
-
Hermetically sealed optical assembly to prevent condensation.
-
Stable performance with strong anti-interference and shock resistance.
-
Universally compatible with existing heliport lighting systems
-
Mil-spec anodized cast aluminum housing for harsh environments.
-
Built-in surge protection device.
-
Green steady-burning LED light.
-
Pre-wired for quick and easy installation.
-
High-power LED light source with high brightness and long service life.
-
IP68-rated waterproof design; can withstand prolonged water immersion.
-
Heavy-duty aluminum construction for long-term durability.
-
Epoxy-potted LED driver and board cavity for maximum LED lifespan.
-
Waterproof gel wire connectors eliminate the need for crimping tools.
-
Low-profile design reduces the risk of fixture damage.
-
Hard anodized finish extends service life.
-
No RF radiation emissions.
