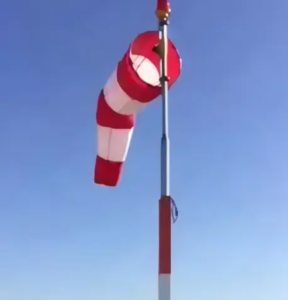

The Altiglo AH980 Externally Illuminated Wind Cone (2.5m) is a reliable aviation visual aid designed to provide clear and accurate wind direction and wind speed indication for heliports, airports, helidecks, and other aviation facilities. Featuring a highly visible 2.5-meter windsock and an external LED illumination system, the AH980 ensures excellent visibility during both daytime and nighttime operations, enhancing flight safety in all weather conditions.
-
Internal Light Source: :
LED, steady burning , colour white
-
Obstruction Light Source: :
LED, steady burning, colour red
-
Obstruction Light Intensity: :
Low Intensity 32 cd
-
Light Color: :
Red / White
-
Light source life :
L-810 LED Obstruction Light on Top
-
Life Expectancy :
100,000+ Hours
-
Mast Material: :
Stainless Steel (SS304)
-
Input Voltage: :
AC220V, 50/60Hz (Optional voltage: AC120V, DC48V)
-
Power Consumption: :
20W
-
Tested Ambient Temperature: :
-20°C to +60°C
-
Cable: :
H07RN-F 3x1mm²
-
Assembly: :
Internally Lighted + Obstruction Light
-
Cable Glands Included: :
1 × M20x1.5
-
Mounting: :
Tiltable Foot
-
Install the light on a stable, smooth surface with adequate structural strength. If a suitable mounting surface is unavailable, custom mounting brackets can be provided upon request.
-
During installation, avoid placing the fixture near other strong light sources. Ensure that the photocell remains unobstructed and is not covered by nearby objects.
-
Before connecting the light, verify that the power supply voltage matches the unit's rated electrical requirements.
-
-
-
-
-
-
High-performance LED technology with a minimum service life of 75,000 hours.
-
White light output compliant with CIE Chromaticity Boundary requirements.
-
Anti-glare floodlight hood minimizes glare and enhances pilot visibility
-
Adjustable hinge-type mounting system allows precise beam alignment
-
Suitable for mounting on flat surfaces using a frangible coupling
-
Stable operation with anti-electromagnetic interference and anti-vibration characteristics, making it ideal for radar-sensitive areas.
-
High-visibility yellow cast aluminum housing, lens frame, and mounting arm designed for harsh environmental conditions.
-
Protective metal guard enhances lens durability and impact resistance.
-
High-transmission polycarbonate (PC) diffuser with excellent impact resistance, UV protection, thermal stability, and aging resistance..
-
Standard cable interface for simplified installation and maintenance
