A high-precision testing system designed to measure air leakage in HVAC ductwork, ensuring compliance with industry standards and improving system efficiency, energy performance, and installation quality. Ideal for commercial, industrial, and residential HVAC applications.
-
Air Flow Large Nozzle Range :
41 ~ 483 CFM
-
Air Flow Small Nozzle Range :
2.4 ~ 41 CFM
-
Air Flow Accuracy :
± (2.5% of reading +0.06 CFM)
-
Air Flow Resolution :
0.01 CFM
-
Static Pressure Range :
± 10 in. wg
-
Static Pressure Accuracy :
± (1% of reading +0.004 in. wg.)
-
Static Pressure Resolution :
0.001 in. wg
-
Temperature Range :
32ºF ~ 140ºF
-
Dimensions (WxDxH) :
18.9 x 24.7 x 44.3 inches
-
Weight :
Net weight approximately 60kg
-
Data Logging :
Up to 1000 measurements
-
Power Supply :
(100-120V, 1 Phase) 50 / 60 Hz, 16A
-
Airflow & Pressure Accuracy :
High-precision measurement for HVAC duct systems
-
Real-Time Display :
Instant graphical and numerical data visualization
-

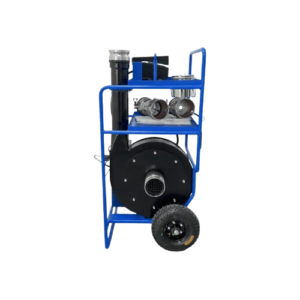

Portable Design :
Wheel-mounted unit for convenient on-site mobility
-
Standards Compliance :
SMACNA, BS EN 12237:2003 (EU), BS EN 1507:2006 (EU), DW/143 (EU), Eurovent 2/2 (EU), and GB50243
-
Data Logging :
Integrated storage for up to 1000 test records
-
Touchscreen Interface :
User-friendly control for simplified operation
